Slack Pulling Single/Double Weave Closed Mesh
- Amtec Slack Pulling Grips are made of galvanized steel and come in three styles with a single offset eye for easy attachment to a pulling line.

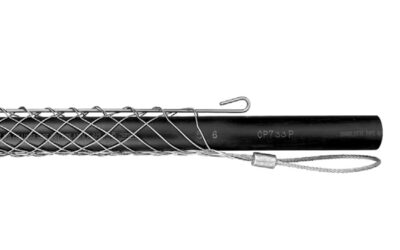

- Closed, when the cable end is accessible, split lace and rod closing when cable end is not accessible.
- Grips are used in pulling slack for final placement of underground cable after it has been pulled and for removing cable.
- Short mesh to be used in restricted space for short pulls and longer mesh for higher pulling loads where space is not restricted.
Standard, Single Mesh
| Part Number |
Dia. Ra. | Description | Approx. Breaking Strength |
Eye Length |
Mesh Length |
| 3308-001 | .50-.61 | SPG-050-SW | 1000 LBS. | 6 | 11 |
| 3308-002 | .62-.74 | SPG-062-SW | 1200 LBS. | 6 | 12 |
| 3308-003 | .75-.99 | SPG-075-SW | 1750 LBS. | 7 | 12 |
| 3308-004 | 1.00-1.24 | SPG-100-SW | 2500 LBS. | 8 | 15 |
| 3308-005 | 1.25-1.49 | SPG-125-SW | 2500 LBS. | 8 | 16 |
| 3308-006 | 1.50-1.74 | SPG-150-SW | 3000 LBS. | 9 | 17 |
| 3308-007 | 1.75-1.99 | SPG-175-SW | 3500 LBS. | 10 | 18 |
| 3308-008 | 2.00-2.49 | SPG-200-SW | 5000 LBS. | 10 | 19 |
| 3308-009 | 2.50-2.99 | SPG-250-SW | 5000 LBS. | 10 | 20 |
| 3308-010 | 3.00-3.49 | SPG-300-SW | 8000 LBS. | 12 | 21 |
| 3308-011 | 3.50-3.99 | SPG-350-SW | 8000 LBS. | 12 | 22 |
Standard, Double Weave
| Part Number |
Dia. Ra. | Description | Approx. Breaking Strength |
Eye Length |
Mesh Length |
| 3308-015 | .75-.99 | SPG-075-DW | 2600 LBS. | 7 | 12 |
| 3308-016 | 1.00-1.24 | SPG-100-DW | 4000 LBS. | 8 | 15 |
| 3308-017 | 1.25-1.49 | SPG-125-DW | 5400 LBS. | 8 | 16 |
| 3308-018 | 1.50-1.74 | SPG-150-DW | 6600 LBS. | 9 | 17 |
| 3308-019 | 1.75-1.99 | SPG-175-DW | 10000 LBS. | 10 | 18 |
| 3308-020 | 2.00-2.49 | SPG-200-DW | 11000 LBS. | 10 | 19 |
| 3308-021 | 2.50-2.99 | SPG-250-DW | 11000 LBS. | 10 | 20 |
| 3308-022 | 3.00-3.49 | SPG-300-DW | 14500 LBS. | 12 | 21 |
| 3308-023 | 3.50-3.99 | SPG-350-DW | 14500 LBS. | 12 | 22 |
Long, Double Weave
| Part Number |
Dia. Ra. | Description | Approx. Breaking Strength |
Eye Length |
Mesh Length |
| 3308-026 | .75-.99 | SPG-075-DW-L | 2600 LBS. | 7 | 20 |
| 3308-027 | 1.00-1.24 | SPG-100-DW-L | 4000 LBS. | 8 | 20 |
| 3308-028 | 1.25-1.49 | SPG-125-DW-L | 5400 LBS. | 8 | 23 |
| 3308-029 | 1.50-1.99 | SPG-150-DW-L | 10000 LBS. | 9 | 25 |
| 3308-030 | 2.00-2.49 | SPG-200-DW-L | 11000 LBS. | 10 | 26 |
| 3308-031 | 2.50-2.99 | SPG-250-DW-L | 11000 LBS. | 10 | 29 |
| 3308-032 | 3.00-3.49 | SPG-300-DW-L | 14500 LBS. | 12 | 32 |
| 3308-033 | 3.50-3.99 | SPG-350-DW-L | 14500 LBS. | 12 | 35 |
Mesh Length at Nominal Diameter (Inches)
